The Great Wave off Kanagawa by Katsushika Hokusai.

I stand on my sand dune top watching a great wave coursing in from the sea, and know that I am watching an illusion, that the distant water has not left its place in the ocean to advance upon me, but only a force shaped in water, a bodiless pulse beat, a vibration.
– Henry Benson

Poetry in motion
See her gentle sway
A wave out on the ocean
Could never move that way
– Johnny Tillotson, ‘Poetry In Motion’

What To Expect In This Chapter

The mention of the word ‘waves’ might probably make you think of waves in the ocean. However, waves are not just confined to the seas. Waves are all around us in many different forms! We use them every day! For instance, every time we see or hear, we use waves.

We routinely use the knowledge of waves in labs. Every time we use a microscope, collect a spectrum or look at the stars, we are using waves. Fascinatingly, we also need the ideas of waves to understand how the atomic domain works. So, this is a whirlwind tour of the uber-cool phenomenon of waves.

1 What is a Wave?

1.1 An Aunty Friendly Answer

Waves are nature’s ingenious way to transfer energy from one point to another without transferring matter. Although waves entail motion of particles, this motion is oscillatory, making their overall displacement zero.

Let’s see if our everyday experiences support this idea. Recall a time when you saw a wave in the ocean, elegantly moving towards the shore. There is clearly something moving, but it is not like a river where the water itself is flowing. Whenever a wave passes a boat, it makes the boat bob up and down, imparting kinetic and potential energy. So there is energy transfer, and there is no flow of water.

If this is a typical ocean wave, the energy imparted to the boat could have been transferred from a distant storm or the steady winds that hug the surface of the ocean.

2 A More Rigorous Answer

If you pause and consider, you will see that a wave is a thing of beauty; a dance of the particles in space and time. It is a choreography par excellence.

To appreciate what a wave is, it helps to think of the Mexican (or Kallang) wave in a stadium. For the wave to exist, people must stand and sit at the right time and in the right place. So a wave requires exquisite coordination in both space and time. This space–time relationship of a wave is embodied in what is called the wave equation.

‘Anything’ that satisfies the wave equation is a wave.

3 The Wave Equation

3.1 The Wave Equation in 1D

The wave equation is a statement about the the space–time choreography that a wave performs.

The 1D wave equation is:

\[ \frac{\partial^2 f}{\partial x^2} \;=\; \frac{1}{v^2}\,\frac{\partial^2 f}{\partial t^2} \tag{1}\]

Here \(f(x,t)\) is the wave function. It tells you the displacement the wave produces at point \(x\) and time \(t\).

• If \(f(x,t)\) represents a wave in the ocean, \(f(x,t)\) will be the height of the water.

• If \(f(x,t)\) represents a sound wave, \(f(x,t)\) will be the pressure in the air.

• If \(f(x,t)\) represents a vibrating guitar string, \(f(x,t)\) will be how much the string is stretched past its stationary state.

The constant \(v\) in the equation is the wave speed. It is the speed at which the wave propagates. Every value of \(v\) defines a different wave equation.

Visualising \(f(x,t)\)

Let’s stop for a bit to ask what \(f(x,t)\) looks like. Since it depends on two variables, we can produce two types of plots¹ as shown in Figure 1:

• If we fix \(t\), we get a snapshot in space of many particles at one instant.

• If we fix \(x\), we see how one particle moves in time.

Figure 1: Two ways to plot a wave. Left a snapshot in time showing many particles. Right Focus on a single point over time.

3.2 Who Satisfies the Wave Equation?

If asked to think of a functional form for a wave, the first functions that might come to mind are trigonometric ones like \(\sin x\) or \(\cos x\). But a wave must involve both space and time. So, a more correct candidate is:

\[ f(x,t) = \sin(kx - \omega t) \]

where \(k\) and \(\omega\) are constants.

In fact, any function of the form \(f(kx - \omega t)\) is a wave: something that moves through space as time passes.

Here, \(f(kx - \omega t)\) is a general function that could represent, for example,
\(e^{kx - \omega t}\), \(\sin(kx - \omega t)\), \((kx - \omega t)^2\), and so on. By “function of the form,” I mean that \(x\) and \(t\) always appear together in the combination \(kx - \omega t\). Mathematically, \(f\) is just a function of \(x\) and \(t\). But since \(x\) and \(t\) always occur together with the signature \(kx - \omega t\), it is more insightful to write the function as \(f(kx - \omega t)\).

Now let me prove that \(f(kx - \omega t)\) is a wave using two approaches.

Brute force mathematical approach:

Let me show you that the function \(f(kx - \omega t)\) satisfies the wave equation.

Let \[ \theta \equiv kx - \omega t \]

so that \[ \frac{\partial \theta}{\partial x} = k, \qquad \frac{\partial \theta}{\partial t} = -\omega. \]

Let’s work on the variation in space. Here I will use the chain rule²for differentiation. \[ \frac{\partial f}{\partial x} = \frac{\partial f}{\partial \theta} \cdot \frac{\partial \theta}{\partial x} = k \frac{\partial f}{\partial \theta}. \]

Differentiating again: \[ \frac{\partial^2 f}{\partial x^2} = k \frac{\partial}{\partial x}\!\left(\frac{\partial f}{\partial \theta}\right) = k \frac{\partial}{\partial \theta}\!\left(\frac{\partial f}{\partial \theta}\right) \cdot \frac{\partial \theta}{\partial x} = k^2 \frac{\partial^2 f}{\partial \theta^2}. \]

So,

\[ \boxed{{\frac{\partial^2 f}{\partial \theta^2}=\frac{1}{k^2}\frac{\partial^2 f}{\partial x^2}} } \]

Now onto the differentiate with respect to \(t\):

\[ \frac{\partial f}{\partial t} = \frac{\partial f}{\partial \theta} \cdot \frac{\partial \theta}{\partial t} = -\omega \frac{\partial f}{\partial \theta}. \]

Differentiating again: \[ \frac{\partial^2 f}{\partial t^2} = -\omega \frac{\partial}{\partial t}\!\left(\frac{\partial f}{\partial \theta}\right) = -\omega \frac{\partial}{\partial \theta}\!\left(\frac{\partial f}{\partial \theta}\right) \cdot \frac{\partial \theta}{\partial t} = \omega^2 \frac{\partial^2 f}{\partial \theta^2}. \]

\[ \boxed{{\frac{\partial^2 f}{\partial \theta^2}=\frac{1}{\omega^2}\frac{\partial^2 f}{\partial t^2}} } \]

Comparing the boxed results, yields:

\[ \frac{1}{k^2}\frac{\partial^2 f}{\partial x^2} = \frac{1}{\omega^2}\frac{\partial^2 f}{\partial t^2}. \]

Or equivalently, \[ \frac{\partial^2 f}{\partial x^2} = \frac{1}{\left(\omega/k\right)^2}\frac{\partial^2 f}{\partial t^2}. \]

Comparing this with Equation 1, we see that any function of the form \(f(kx - \omega t)\) represents a wave. Further, the wave speed is given by:

\[ v = \frac{\omega}{k}. \tag{2}\]

Scrutinising the Form \(f(kx - \omega t)\)

A more elegant way to see that \(f(kx - \omega t)\) is a wave follows from looking closely at what this expression means.

Consider a snapshot of \(f\) at a time \(t_0 + \Delta t\). For the point at \(x=x_0\) the value if \(f\) is: \[ f\lrs{kx_0 - \omega (t_0 + \Delta t)} \]

But, \[ \begin{align} kx_0 - \omega (t_0 + \Delta t) &= kx_0 - \omega\Delta t -\omega t_0 \\ &= k(x_0 - \f{\omega}{k}\Delta t) -\omega t_0 \\ \underbrace{kx_0 - \omega (t_0 + \Delta t)}_\text{$f$ at $x_0$ at $(t_0 + \Delta t)$}&= \underbrace{kx' -\omega t_0}_\text{$f$ at $x'$ at $t_0 $} \\ \end{align} \]

Where, \(x'=x_0 - \f{\omega}{k}\Delta t\).

Figure 2: \(f(kx - \omega t)\) just shifts the wave form in the \(x\) direction as time passes.

This tells us that the value of \(f\) at \((x_0, t_0 + \Delta t)\) is the same as the value at a shifted position \(x' = x_0 - \f{\omega}{k}\Delta t\) at an earlier time \(t_0\). In other words, the wave profile just shifts in the \(x\)-direction as time passes!

How fast does this shifting take place? The speed is simply:

\[ v = \f{\text{distance shifted}}{\text{time}} = \f{\f{\omega}{k}\Delta t}{\Delta t} = \f{\omega}{k} \]

4 Terminology

Let’s quickly remind ourselves of some terminology related to waves that we encounter often.

Imagine yourself floating in the ocean and experiencing the up-and-down motion as waves pass by. The highest points of the oscillation are called crests, and the lowest points are called troughs. The maximum displacement from the sea level is called the amplitude.

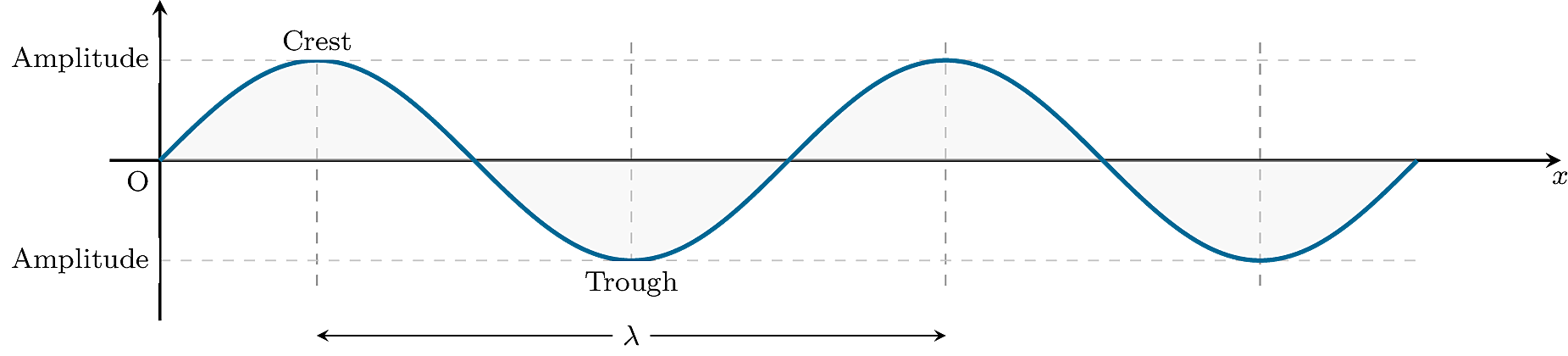

Some common wave terminology.

The number of times this up-and-down motion occurs in a given interval of time is related to the frequency. Specifically, the frequency \(f\) is the number of oscillations per second, measured in hertz (Hz). Closely related to this is the period \(T\), the time it takes to complete one oscillation. These quantities are connected through the relation

\[ T = \frac{1}{f}. \tag{3}\]

The distance between successive crests (or successive troughs) is called the wavelength \(\lambda\). Since a wave travels one wavelength \(\lambda\) in one period \(T\), the wave speed \(v\) is given by

\[ v = \frac{\lambda}{T} \]

Which leads us to the well-known relationship between the wave speed \(v\), the frequency \(f\), and the wavelength \(\lambda\):

\[ v = f \lambda \tag{4}\]

4.1 What is \(k\) and \(\omega\)?

Let’s try to get a bit more insight into what \(k\) and \(\omega\) are.

Angular Wave Number \(k\)

First lets consider the function \(\cos kx\). What is its wavelength? To find this, we recall that the function must repeat after one wavelength \(\lambda\):

\[ \cos kx = \cos k(x + \lambda) = \cos kx + k\lambda . \]

This implies \[ k\lambda = 2\pi, \]

and consequently, \[ k = \frac{2\pi}{\lambda}. \tag{5}\]

where \(k\) is called the angular wave number.

Angular Frequency \(\omega\)

Now consider \(\cos\omega t\). This function must repeat after one period \(T\) so: \[ \cos \omega t = \cos \omega (t + T) = \cos \omega t + \omega T . \]

This implies \[ \omega T = 2\pi, \]

and,

\[ \omega = \frac{2\pi}{T} \]

Since frequency is \(f = 1/T\), \[ \omega = 2\pi f. \tag{6}\]

where \(\omega\) is call the angular frequency.

5 The Ingredients for a Wave

Let’s pause for a bit to understand more clearly what it takes to generate a wave. I will use a wave in a medium as a general example. The only exception to this is light (electromagnetic waves), which does not require a medium and can propagate even through the vast emptiness between stars. For the moment, however, you can imagine that there is always a medium. This makes it easier to visualise how waves behave, without immediately having to grapple with the more abstract ideas required for electromagnetic waves.

At its core, a wave is simply a way of passing on a disturbance that is caused by a source. The source disturbs the medium by imparting energy into the medium, and a restoring force acts to bring the medium back to its original state. How strongly this restoring force acts will influence how the disturbance propagates. The nature of the medium (e.g. density, rigidity) then determines how fast the wave can travel.

So, a wave requires:

1. A source of energy (to generate the disturbance).
2. A medium or mechanism (that can ‘hold’ the energy transferred by the source),

3. A restoring force (to push the medium back).

The wave is therefore a consequence of the system trying to restore itself to its equilibrium state. A wave is simply the disturbance being passed along from one connected part of the medium to the next.

The table below shows some typical waves we encounter.

Wave	Restoring Force	Medium Parameter of Importance
Ocean (gravity) waves	Gravity	\(\rho\) density of water
Guitar String	Tension	\(\mu\) mass per unit length
Sound waves	Intermolecular attraction	\(\rho\) density of medium
Electromagnetic (EM)	Maxwell’s equations(electric and magnetic fields restoring each other)	\(\varepsilon_0\), \(\mu_0\) properties of vacuum

Table 1: Some everyday waves with the relevant restoring forces and parameters important in propagating the wave.

6 Energy Stored in a Wave

The energy stored in a wave is ultimately stored in how the disturbance distorts the medium.

• In a water wave, energy is stored as the kinetic and gravitational potential energy of the particles.

• In a sound wave, energy is also stored as kinetic and elastic potential energy of the medium.

• Light is very special: it is made up of oscillating electric and magnetic fields, and these fields themselves store energy simply by existing!

Since a wave is about transferring energy, it makes more sense to talk about how much energy flows past in a given time. This leads to the idea of intensity.

Intensity

Intensity (\(I\)) is the flow of energy per unit area per unit time.
Its SI unit is joules per square metre per second (\(\text{J m}^{-2}\,\text{s}^{-1}\)), which is equivalent to watts per square metre (\(\text{W m}^{-2}\)).

However, due to the oscillatory nature of waves, the instantaneous intensity at any point changes with time. It therefore makes sense to also talk about the average intensity over time. I will denote this time average as \(\langle I \rangle\). To get a feel of what we are dealing with the table below shows the average intensities for several different waves.

Wave	Average Intensity \(\langle I \rangle\)	Notes
Ocean (gravity) waves	\(\f{1}{2}\,\rho g A^2 v\)	\(\rho\) density of water, \(g\) gravity, \(v\) wave speed, \(A\) amplitude
Guitar string	\(\f{1}{2}\,\mu \omega^2 A^2 v\)	\(\mu\) mass per unit length of string, \(v\) wave speed, \(A\) amplitude
Sound wave	\(\f{1}{2}\,\rho v \omega^2 s_0^2\)	\(\rho\) medium density, \(v\) sound speed, \(s_0\) displacement amplitude
Electromagnetic (EM)	\(\f{1}{\mu_0} E_0 B_0 = \tfrac{1}{2} c \varepsilon_0 E_0^2\)	\(\mu_0\) permeability of free space, \(\varepsilon_0\) permittivity of free space, \(c\) speed of light, \(E_0\) electric field amplitude

Table 2: The expressions for the average intensity of some different types of waves.

Although the exact form of the expressions differs from one type of wave to another, you will notice a common pattern: the average intensity always depends on the square of the amplitude, the square of the frequency, and the speed of the wave.

7 Dispersion and Wave Speed

7.1 Wave Speeds

How fast a wave travels in a medium depends on how the medium responds to deformation. To give you a feel for how this works out the table below gives the expressions for the speed of different waves.

Wave	Wave Speed \(v\)	Notes
Ocean (gravity) waves	\(\begin{align*}v &= \sqrt{gd}\quad\text{(shallow water)}\\v &= \sqrt{\dfrac{g \lambda}{2\pi}}\quad\text{(deep water, $d \gt \frac{1}{2}\lambda$)}\end{align*}\)	\(d\) depth \(g\) gravity, \(\lambda\) wavelength
Guitar string	\(v = \sqrt{\dfrac{T}{\mu}}\)	\(T\) tension in string, \(\mu\) mass per unit length
Sound wave	\(v = \sqrt{\dfrac{B}{\rho}}\)	\(B\) bulk modulus (compressibility), \(\rho\) density
Electromagnetic (EM)	\(c = \f{1}{\sqrt{\mu_0 \varepsilon_0}}\)	\(\mu\) permeability, \(\varepsilon\) permittivity

Table 3: The speed of different kinds of waves.

7.2 Dispersion

Notice, that some media (e.g. the deep ocean) have different speeds for different wavelength. We call these media dispersive; meaning they separate different wavelengths because different wavelengths travel at different speeds. This phenomenon is called dispersion.

7.3 The Speed of Light

It can be shown that any changing electric or magnetic field in a vacuum gives rise to a wave-like phenomenon that we call light. Light is one of the most remarkable and unique phenomena in nature. The recognition that light is a wave capable of propagating through empty space was a major triumph of Maxwell’s equations of electromagnetism (1864).

A few decades later, in 1905, Einstein’s theory of special relativity established another seminal principle: the speed of light in vacuum \[ c = 2.998 \times 10^8 \text{m s}^{-1} \] is the absolute upper limit to how fast any signal, particle, or information can travel in our universe.

7.4 Refractive Index & Light in Materials

The speed of light in a material is always less than in vacuum. How much it slows is so important that materials are characterised by an optical refractive index defined by

\[ n = \frac{c}{v}, \tag{7}\]

where \(c\) is the speed of light in vacuum and \(v\) is the speed of light in the material.

The refractive index is wavelength-dependent, so most materials are dispersive for light.

Material	Refractive Index \(n\)
Air	1.0003
Water	1.33
Glass	1.5.
Diamond	2.42

Table 4: Typical refractive indices of some material

8 Superposition of Waves & Interference

Principle of Superposition

When two or more waves occupy the same point in space, the displacement at that point is the vector sum of the individual waves:

\[ f_\text{result} = f_1 + f_2 + f_3 + \cdots \]

When waves add up according to the principle of superposition, we say that they are interfering. Interference is one of the most fundamental features of waves. In fact, almost all other wave-related phenomena (such as reflection, refraction, and diffraction) can ultimately be traced back to interference.

Consider two waves:

\[\begin{align} f_1 &= A \cos(kx - \omega t)\\ f_2 &= A \cos(kx - \omega t + \alpha) \end{align}\]

where \(A\) is the amplitude and \(\alpha\) is a constant called the phase difference between the waves (we will return to the idea of phase difference in more detail soon).

If these waves interfere along the \(x\)-axis: \[ f = f_1 + f_2 = 2A \cos \lr{\f{\alpha}{2}}\cos \lr{kx - \omega t + \f{\alpha}{2}} \]

Since we are interested in superposition at a given point in space, we can safely examine the displacements at a fixed time \(t = 0\) without losing generality.

\[ f = f_1 + f_2 = 2A \cos \lr{\f{\alpha}{2}}\cos \lr{kx + \f{\alpha}{2}} \]

Different values of \(\alpha\) determine the way in which the two waves interfere. Let’s plot this with \(\lambda=1\) for different values of \(\alpha\).

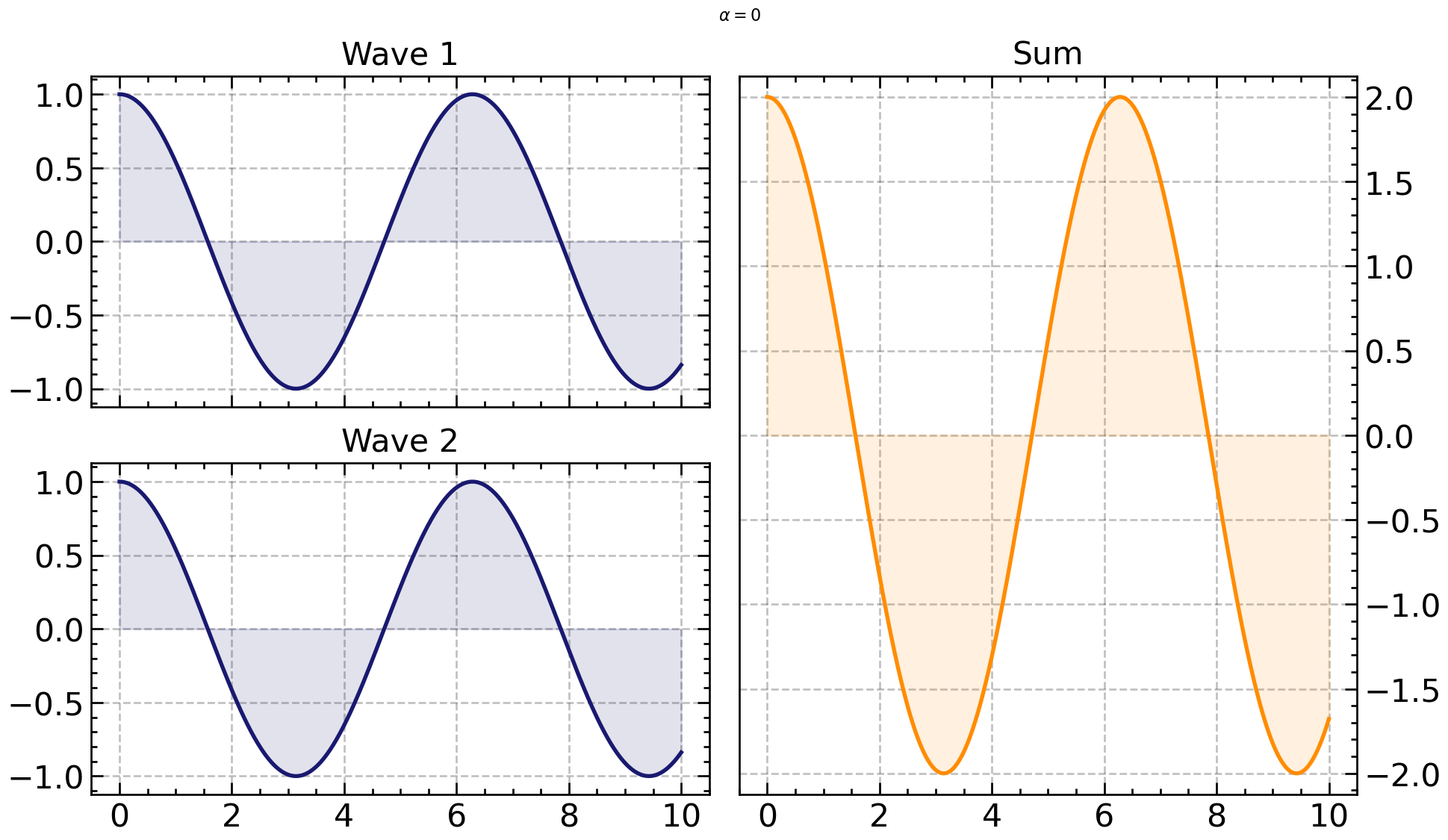

Constructive interference

\(\alpha = 0\) so the waves are in complete agreement and add up maximally.

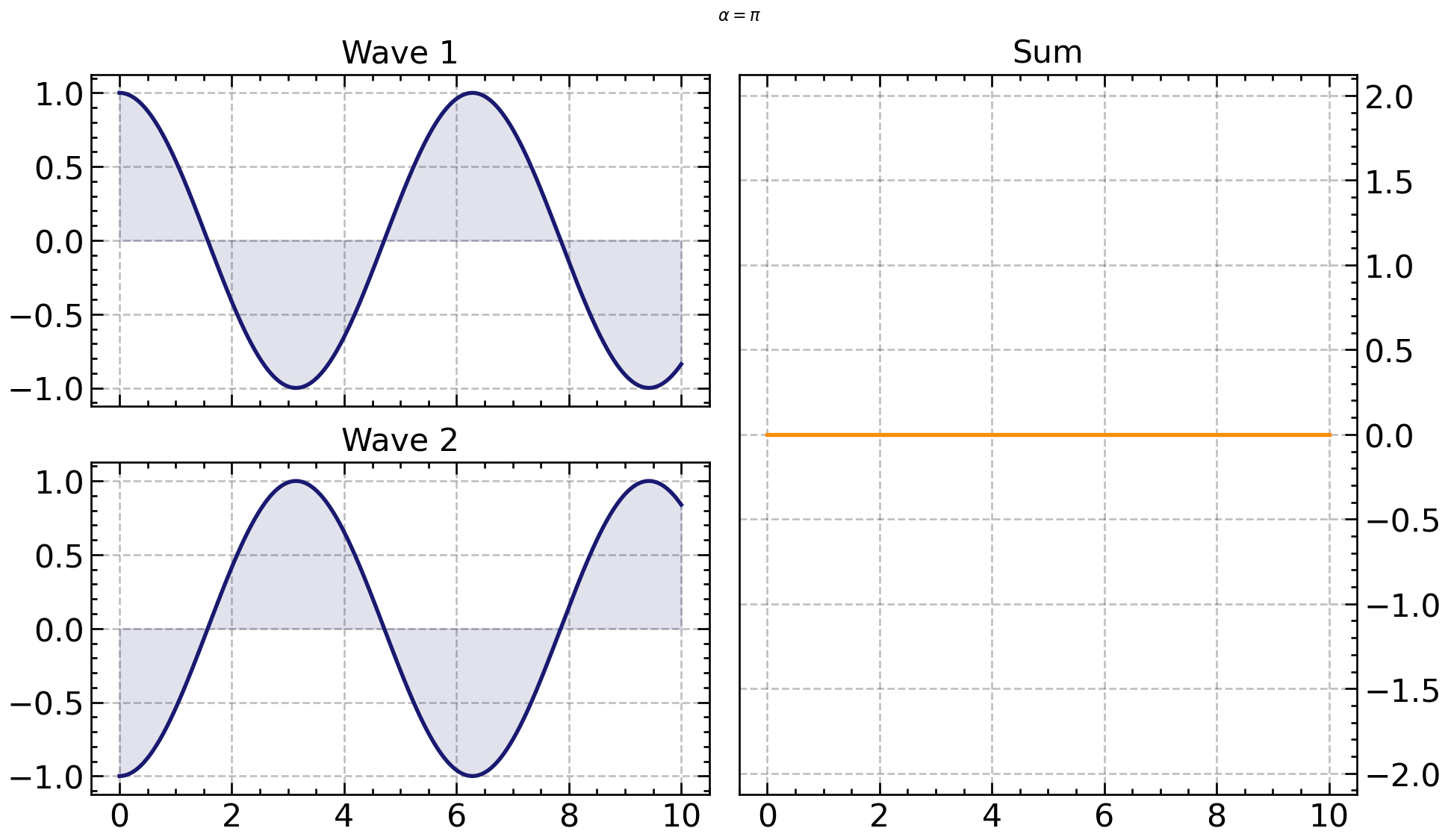

Destructive interference

\(\alpha = \pi\) so the waves are in complete disagreement and cancel each other out.

Partial interference

\(0 < \alpha < \pi\) so this is a state between constructive and destructive interference is called partial interference. In this case, the resulting amplitude lies between the two extremes.

9 Fundamental Wave Phenomena

There are three³ other fundamental wave phenomena (besides interference) that I want to highlight: Reflection, Refraction, and Diffraction.

Reflection is the bouncing of waves off an obstacle. You can see this in Figure 5 alongside.

Refraction is the bending of waves at a boundary due to a change in speed, as shown in Figure 3.

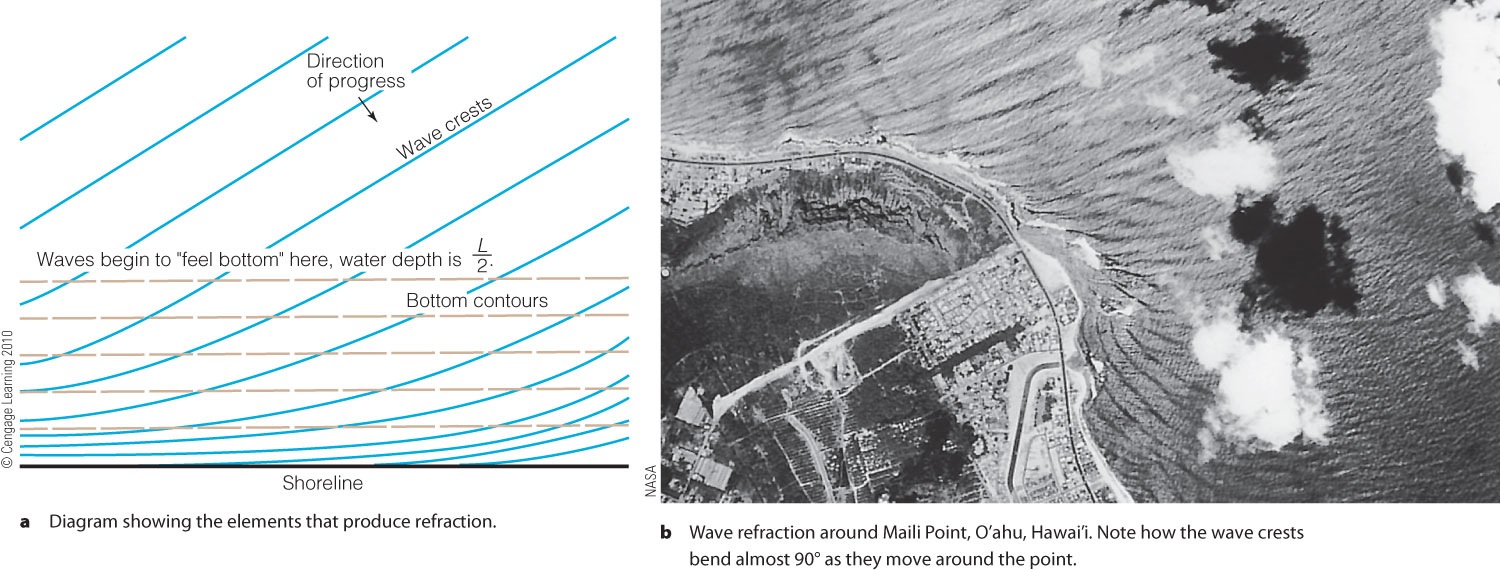

Figure 3: Wave refraction: water waves travel slower in shallow water; hence waves bend when approaching the beach from deeper water. Image from Garrison (2015).

Diffraction is the bending of a wave when it passes through a gap or around an obstacle, as in Figure 4. The degree of bending depends on how the size of the gap or obstacle compares with the wavelength.

Figure 4: Waves diffracting as they pass through the gap in a breakwater. Image from Garrison (2015).

For example, we can hear people talking around a corner because of sound diffraction. Another striking example is a tsunami. Being waves, tsunamis also exhibit diffraction. Figure 6 shows a simulation of the 2004 Indian Ocean tsunami: notice how the wave bends around Sri Lanka and impacts cities on the western side of the island.

Figure 5: Wave reflection. Image from Garrison (2015).

Figure 6: A simulation of the 2004 Indian Ocean tsunami. Notice how the wave bends around Sri Lanka and ‘hits’ cities on the western side of the island.

10 Path Difference & Phase Difference

10.1 The Idea of Path and Phase Difference

Consider two waves that occupy the same space so that they end up interfering. We know from the section of superposition that the result of this interference depends on the alignment of their crests (or troughs). We use the terms phase difference and path difference to describe this alignment. Knowing the phase or path difference between waves is crucial to predicting how they will interfere.

Both phase difference (\(\phi\)) and path difference (\(\Delta\)) describe the same property related to alignment but in different units:
- \(\phi\) is an angle (measured in radians).
- \(\Delta\) is a length (measured in metres).

These are related by: \[ \phi \;=\; 2\pi\lr{\f{\Delta}{\lambda}} \tag{8}\]

Figure Figure 7 illustrates the idea of \(\phi\) and \(\Delta\). It shows five identical sources placed at different locations along a straight line (separated vertically for clarity). The path difference is measured with respect to source \(S_1\).

Path Difference (\(\Delta\))	Phase Difference (\(\phi\))	Type of Interference
\(n\lambda\) (Even multiple of \(\lambda\))	\(2n\pi\) (Even multiple of \(\pi\))	Constructive
\((2n+1)\f{\lambda}{2}\) (Odd multiple of \(\f{\lambda}{2}\))	\((2n+1)\pi\) (Odd multiple of \(\pi\))	Destructive

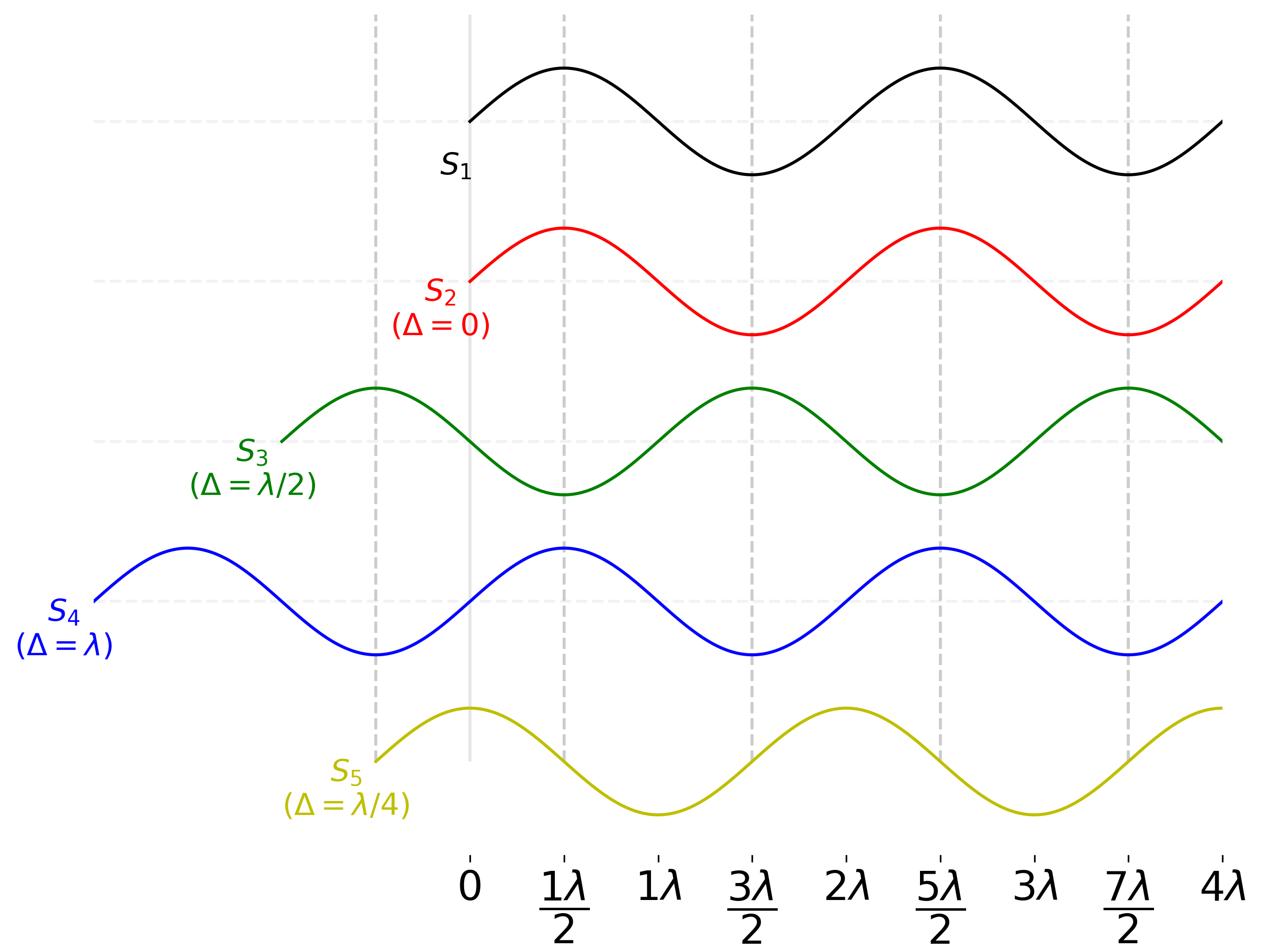

Figure 7: Five identical sources placed at different locations along a straight line. We have separated them vertically for clarity. Also indicated is the path difference with respect to \(S_1\).

10.2 Phase Due to Reflection

If you take a look at Figure 5, you will notice that the reflected wave undergoes a \(\pi\) phase flip. This behaviour is universal for waves reflecting off a denser medium (where the wave speed is slower).

\(\pi\)-flip Rule

• When a wave reflects from a more dense medium, it undergoes a phase shift of \(\pi\), which is equivalent to adding a path difference of \(\f{\lambda}{2}\).

• When a wave reflects from a less dense medium, there is no phase (path) change.

10.3 Optical Path Difference (OPD)

Figure 8: Optically dense material is worth more path difference than air.

Consider the situation in figure above where two light beams \(A\) and \(B\) of frequency \(f\) and wavelength \(\lambda\) travel from left to right.

• The \(A\) travels entirely through air (or vacuum).

• The \(B\) passes through a material of refractive index \(n\) and thickness \(d\).

Since the speed of light in the material is \(v = \dfrac{c}{n}\), the time taken to traverse the thickness \(d\) is

\[ \Delta t' = \frac{d}{v} = \frac{nd}{c}. \]

Meanwhile, the beam in air takes only

\[ \Delta t = \frac{d}{c}. \]

This extra delay for \(B\) means that when it reaches the right it will be out phase with \(A\).

To include the effect of the material we define the optical path length as length which light needs to travel through a vacuum to create the same phase difference as it would have when traveling through a given medium. In other words, a physical distance \(d\) in a medium of refractive index \(n\) is equivalent to a distance \(nd\) in air (or vacuum).

Optical Path Length

\[ \text{Optical Path Length} = nd. \tag{9}\]

11 Instruments

11.1 Diffraction Grating

We learnt that diffraction causes a wave to spread out when it passes through a gap or slit. Figure Figure 10 shows the intensity (i.e. brightness) pattern you expect when you send light through one slit and through multiple slits.

It turns out that there is a clear relationship between the spacing between the peaks and the wavelength of the light used. This means we can use such patterns to measure the wavelength of light! This is very useful because the wavelengths present in light can tell us about the processes that created that light.

If you increase the number of slits to thousands, you end up with a sharp set of bright points (called orders). The zeroth-order is the brightest and indicates the direction the light would have gone if it had not been diffracted. The angles to the higher orders are given by the grating equation:

\[ d \sin \theta = m \lambda \tag{10}\]

where,

• \(d\) is the separation between the slits

• \(m\) in the integer order of the bright spot (0 for central, 1 for first order,\(\ldots\))

• \(\theta\) angle between the zeroth (\(m=0\)) order and the \(m\)th order

Derivation of the Grating Equation

Figure 9: The path relationship of the diffraction grating

Figure 10: Diffraction from multiple slits.

Let me take you through the derivation of the grating equation, because it is a nice example of the importance of path differences.

If you look at Figure 9, you will see that if rays \(A\) and \(B\) are to produce a bright spot, the path difference between them must be a multiple of the wavelength \(\lambda\).

Notice that the only difference in path occurs between \(B'\) and \(X\). So, the condition for a bright spot at angle \(\theta\) is that

\[ B'X = m \lambda, \]

which gives

\[ d \sin \theta = m \lambda. \tag{11}\]

11.2 Interferometry

Interferometry is a powerful technique for making precise measurements. I know of at least two Nobel Prizes have been awarded for advances in interferometry—one for the Michelson interferometer in 1907 and more recently for the groundbreaking discoveries of LIGO in 2017. You may not realise it, but every time you use an FTIR spectrometer, you are making use of an interferometer.

At its heart an interfermeter is simply a device that keeps track of path and phase differences between waves that travel along different routes. In this section, I will introduce you to one of the most basic interferometers: the Michelson Interferometer. By understanding this simple case, you will be able to appreciate how interferometry works in general.

Figure 11: The Michelson interferometer (Image from here)

The Michelson interferometer has two mirrors, one of which can be moved. When set up, the signal at the detector looks like in Figure 11. It can easily be shown that the signal at the detector depends on the path difference between the two arms of the interferometer, i.e. \(d_1 - d_2\), where \(d_1\) and \(d_2\) are the distances to the mirrors. More specifically, when \(d_1 - d_2\) changes by \(\f{\lambda}{4}\), the total path difference changes by \(\f{\lambda}{2}\). By adjusting the length of the movable mirror arm, we can cycle through conditions of constructive and destructive interference.

A typical experiment involves moving the mirror slowly, passing through several cycles of constructive and destructive interference, and counting the number of fringes (bright-to-dark transitions). From this count, the distance moved by the mirror can be determined with extremely high precision.

12 Other Wave Phenomena

12.1 The Doppler Effect

The Doppler Effect arises when there is relative motion between a wave source and an observer. It is most familiar in sound, but the principle applies to all waves, including water waves, seismic waves, and even light.

You have certainly experienced this with an ambulance siren. As the ambulance approaches, the pitch of the siren sounds higher; as it recedes, the pitch sounds lower. The siren itself does not change frequency; the effect is due to the compression or stretching of wavefronts caused by motion. This shift in observed frequency is the essence of the Doppler Effect.

The Doppler Effect is much more than oddly sounding ambulances. In astronomy, the redshift and blueshift of stars and galaxies reveal their motion relative to Earth, with the redshift of distant galaxies providing direct evidence for the expansion of the universe. In medicine, Doppler ultrasound is used to map blood flow and detect blockages in vessels. In meteorology, Doppler radar measures the speed and direction of storms and rainfall. And in sports and policing, radar guns based on Doppler shifts are used to measure the speed of balls in tennis, baseball, and cricket and even a passing vehicles.

Everyday Speeds

We will not derive the relationship here, but simply state it. If a source of frequency \(f\) and wave speed \(v\) is observed while the source and/or observer are moving, the detected frequency is

\[ f' = f \left(\frac{v + v_o}{v - v_s}\right), \tag{12}\]

where:

• \(v_o\) is the speed of the observer.

• \(v_s\) is the speed of the source.

• Both \(v_o\) and \(v_s\) are taken as positive when the source and observer are moving towards each other.

Light and Relativity

The Doppler Effect for light is special because it must respect the fact that nothing moves faster than the speed of light. The correct relationship, derived from special relativity, is

\[ f' = f \, \sqrt{\frac{1 + \beta}{1 - \beta}}, \tag{13}\]

where \(\beta = \f{v}{c}\), with \(v\) being the relative speed between source and observer and \(c\) the speed of light. Equation 13 is written for the case when the source and observer are moving towards each other; if they are moving apart, the signs are reversed.

For light, the frequency shift is usually described in terms of redshift and blueshift:

• If the source is moving towards the observer, the observed wavelength is shortened, and the light is shifted towards the blue end of the spectrum (higher frequency).

• If the source is moving away from the observer, the observed wavelength is lengthened, and the light is shifted towards the red end of the spectrum (lower frequency).

References

Garrison, Tom. 2015. Essentials of Oceanography. 7. ed. Stamford, Conn.: Cengage Learning/National Geographic Learning.

Footnotes

1. Plotting in 3D is a terrible, terrible idea. See Fundamentals of Data Visualization

2. The chain rule states that if \(y = f(u)\) and \(u = g(x)\), then \(\tfrac{dy}{dx} = \tfrac{dy}{du}\tfrac{du}{dx}\).

3. Actually four; the fourth is polarisation, which applies only to transverse waves. We’re listing three here because we’re treating interference separately.
